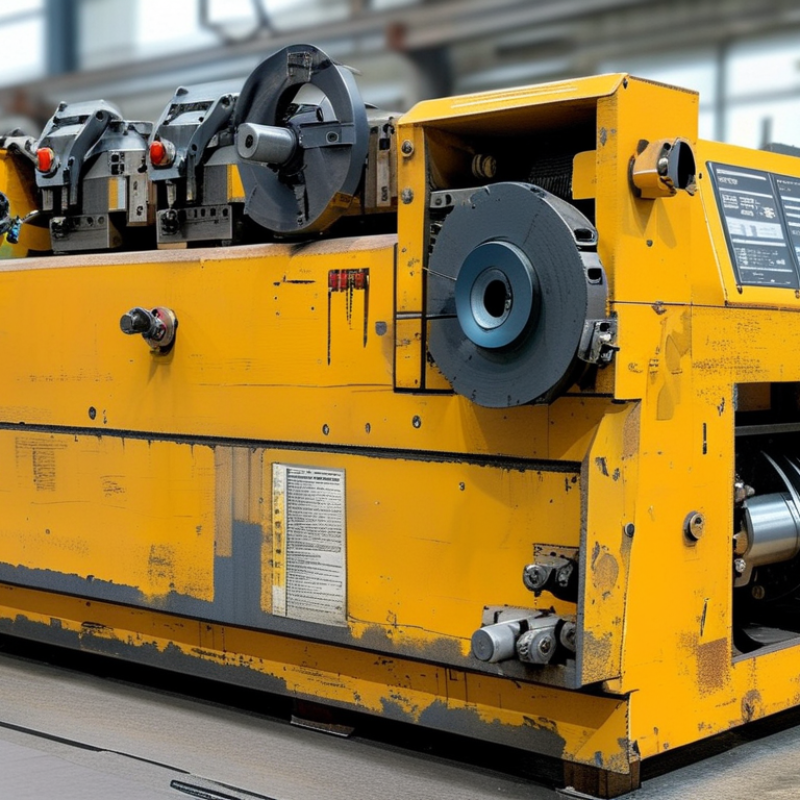

7 Tips for Choosing a Hydraulic Metal Shear Machine?

Choosing a hydraulic metal shear machine is a production decision, not merely a price comparison. The right model must match material grade, thickness, sheet length, cutting frequency, and workshop space. A machine that cuts 6-millimeter steel comfortably may struggle with repeated stainless-steel work. Small differences become expensive quickly.

Grand View Research reported that the global metal fabrication equipment market reached approximately USD 75 billion in 2023, with continued growth expected through 2030. Its findings reflect rising investment in faster, more automated fabrication processes. Deloitte’s 2024 Smart Manufacturing Survey also found that manufacturers increasingly prioritize productivity, reliability, and connected equipment. These trends matter, but they can distract buyers from basic questions. Do you need high tonnage, or better blade control? Is automation useful, or simply impressive?

R. Keith Mobley, a recognized machinery-reliability specialist, wrote, “Reliability is not a maintenance issue; it is a corporate issue.” That principle fits every hydraulic metal shear machine purchase. A dependable unit should offer stable hydraulic pressure, accessible service points, accurate back gauges, and clear safety documentation. The cheapest machine may create uneven edges, frequent downtime, or difficult spare-parts problems. I have seen specifications look excellent on paper, yet practical performance remained uncertain. Factory demonstrations, test cuts, warranty terms, and operator feedback deserve equal attention. This guide examines seven practical tips, while admitting one uncomfortable truth: no checklist can replace careful testing with your actual material.

7 Tips for Choosing a Hydraulic Metal Shear Machine?
Table of Contents [Hide]
1 Define Shear Capacity for 400–550 MPa Mild Steel and Required Thickness
2 Compare Blade Length, Clearance Settings, and the 5–10% Clearance Benchmark
3 Evaluate Rake Angle, Stroke Rate, and 200–300 bar Hydraulic Performance
4 Verify Backgauge Accuracy Against the Common ±0.02 mm Precision Range
5 Check ISO 12100 Safeguards, Maintenance Access, and Lifecycle Costs

Define Shear Capacity for 400–550 MPa Mild Steel and Required Thickness

Choosing a hydraulic metal shear machine starts with the material, not the catalogue thickness. For 400–550 MPa mild steel, confirm the machine’s rated capacity at your actual tensile strength. A machine rated for 10 mm at 400 MPa may handle only about 7.3 mm at 550 MPa, before other limits apply. Check the data sheet carefully.

Measure your common sheet range and cutting length. A longer cut can reduce usable thickness. Check blade length, hydraulic pressure, and motor capacity together. Set blade clearance for the steel grade and thickness; excessive clearance leaves a rough, angled edge. Too little clearance increases burrs and blade stress. Keep this practical.

Inspect the back gauge and hold-down system. Thin sheets can shift during cutting, even when the machine appears powerful. Request a trial cut using your real 400–550 MPa material. Examine the edge, burr height, and plate distortion. Ask whether the stated capacity assumes a specific shear angle. It often does. Also confirm blade material, adjustment access, and replacement cost. One mistake is trusting “maximum thickness” without checking plate width and strength. I have seen that assumption create slow cuts, overheated hydraulics, and poor edges. Allow a safety margin, because workshop conditions are rarely perfect.

Compare Blade Length, Clearance Settings, and the 5–10% Clearance Benchmark

Choosing a hydraulic metal shear machine requires more than checking its maximum tonnage. Blade length must exceed your widest regular sheet by a practical margin. A 2,500 mm blade is unsuitable for repeated 3,000 mm work. Measure your real workload.

Match the blade gap to material thickness. For a 6 mm mild-steel sheet, the 5–10% clearance benchmark means about 0.30–0.60 mm. Too little clearance creates heavy burrs and accelerates edge wear. Too much clearance causes distortion and rough cuts. This benchmark is only a starting point. Stainless steel, aluminum, tensile strength, and sheet temperature can change the correct setting. The Machinery’s Handbook identifies clearance as a key variable in shearing performance, while ISO 12100 supports risk-based machine selection and adjustment procedures.

Check seven details before purchase: usable blade length, maximum thickness, clearance range, hydraulic pressure, stroke rate, back gauge accuracy, and blade replacement access. Test a sample sheet, not just a catalog specification. Inspect the cut edge under bright light. A clean top edge with limited burr formation is more useful than impressive pressure figures. The World Steel Association reported approximately 1.89 billion tonnes of crude steel production in 2023, showing the scale of material variation across fabrication markets. I would not treat any percentage as absolute. Real production trials still expose problems that brochures often miss.

7 Tips for Choosing a Hydraulic Metal Shear Machine: Blade Length, Clearance Settings, and the 5–10% Benchmark

This chart shows calculated blade-clearance settings using the common 5–10% benchmark of material thickness. The examples pair representative blade lengths with plate thicknesses from 3 to 12 mm. A longer blade can process wider sheets in one stroke, while the correct clearance helps reduce burrs, distortion, and excessive blade wear. Always confirm the final setting against the machine manufacturer’s adjustment table and the material grade.

Evaluate Rake Angle, Stroke Rate, and 200–300 bar Hydraulic Performance

Tip 1: Check rake angle before comparing motor power. A smaller angle often reduces peak cutting force and sheet distortion. However, an aggressive angle can leave uneven edges on thin material. Test actual sheets, not only catalog samples. The 2024 World Steel in Figures report recorded about 1.89 billion tonnes of crude steel in 2023, showing why workshops often handle varied grades and thicknesses. A fixed setting may not suit every job.

Tip 2: Match stroke rate to production rhythm. A high stroke rate improves output, but it can increase heat, vibration, and blade wear. Ask for rated cuts per minute at your target thickness, not an unloaded cycle figure. Record ten repeated cycles during acceptance testing. Small differences become expensive over a full shift.

Tip 3: Treat 200–300 bar as a working range, not proof of cutting capacity. This equals approximately 20–30 MPa. Cylinder area, flow rate, blade geometry, and pressure stability determine real cutting force. ISO 4413:2010 emphasizes safe hydraulic-system design, including pressure control, leakage prevention, and maintenance access. Measure pressure at the actuator during a real cut. I would not rely on the gauge alone; its location can hide pressure losses.

Tip 4: Inspect the hydraulic circuit closely. Look for filtration, cooling, hose protection, and accessible relief valves. The wrong oil cleanliness level can shorten valve life. Request test records for repeatability, noise, and temperature rise. This step is often skipped, regrettably.

7 Tips for Choosing a Hydraulic Metal Shear Machine: Evaluate Rake Angle, Stroke Rate, and 200–300 bar Hydraulic Performance
Tip Selection Criterion Practical Data and Reference Range What to Verify Before Purchase Why It Matters
1 Match Rated Cutting Capacity Select capacity according to material type, tensile strength, thickness, and usable cutting length. For mild steel around 400–500 MPa tensile strength, a machine rated for 6 mm should not automatically be expected to cut 6 mm stainless steel. Confirm separate ratings for mild steel, stainless steel, and aluminum. Check whether the published thickness applies across the full cutting length or only to a shorter cut. Required cutting force rises with material thickness and strength. Using the maximum rating continuously can shorten blade and hydraulic-system life.
2 Evaluate Rake Angle Typical hydraulic guillotine shears use a rake angle of approximately 0.5°–3°. A smaller angle generally produces a narrower cutting zone; a larger angle can reduce peak force but may increase sheet distortion. Determine whether the rake angle is fixed or adjustable. Ask for the specified angle at the machine's rated thickness and cutting length. Rake angle influences peak cutting force, strip width, part flatness, noise, and the amount of twist or bow in narrow workpieces.
3 Check Stroke Rate A common operating range for hydraulic metal shears is about 8–30 strokes per minute, depending on model size, cutting length, material thickness, and control settings. Compare the rated strokes per minute at the required thickness, not only the no-load maximum. Check whether the machine provides single-stroke, continuous, and inching modes. A higher stroke rate can improve throughput, but actual productivity also depends on loading, sheet positioning, back-gauge movement, and return time.
4 Assess 200–300 bar Hydraulic Performance 200–300 bar equals 20–30 MPa. Hydraulic force follows the relationship F = p × A, where pressure is p and effective cylinder piston area is A. Pressure alone does not determine cutting capacity. Verify rated working pressure, relief-valve setting, cylinder bore, pump displacement, flow rate, filtration, and pressure stability during a full-load cut. Adequate and stable pressure supports consistent blade penetration. Excess pressure without correctly sized cylinders, valves, and structure does not guarantee higher cutting performance.
5 Review Blade Geometry and Adjustment Four-edge reversible blades are commonly used on many guillotine shears. Blade clearance is often adjustable; a typical reference range is roughly 5%–10% of material thickness, subject to material and machine design. Confirm blade material, edge count, clearance-adjustment method, minimum cuttable thickness, and availability of the correct clearance chart. Incorrect clearance can cause burrs, excessive force, premature wear, or deformation. Reversible edges can reduce maintenance cost and downtime.
6 Prioritize Back-Gauge Accuracy For general fabrication, a practical positioning target is often around ±0.1–0.3 mm, depending on gauge travel, screw or ball-screw design, encoder resolution, sheet condition, and operator technique. Request repeatability results over the intended gauge range. Check gauge travel, front support, compensation for thin sheets, and whether the controller stores multiple cut programs. Gauge repeatability affects part size, batch consistency, material utilization, and the amount of manual re-measuring required.
7 Verify Safety, Maintenance, and Total Cost Look for a guarded cutting line, emergency-stop circuits, two-hand or foot-control protection as applicable, overload protection, accessible lubrication points, and a hydraulic system with suitable filtration. Confirm safety compliance for the installation location, inspection access, oil cleanliness requirements, replacement-filter intervals, blade-change procedure, training, and service availability. Safety systems protect operators, while maintainability and hydraulic cleanliness help preserve pressure stability, stroke performance, and machine availability.
Reference note: Performance values are general engineering selection ranges. Final capacity, stroke rate, rake angle, hydraulic pressure, accuracy, and safety configuration must be confirmed from the machine's technical documentation and tested against the actual material grade, thickness, and cutting length.

Verify Backgauge Accuracy Against the Common ±0.02 mm Precision Range

When choosing a hydraulic metal shear machine, backgauge accuracy deserves close attention. A common precision range is ±0.02 mm, but printed specifications are only a starting point. Ask how accuracy was measured, which material was used, and whether the machine was cold or fully warmed up.

Tip 1: Request a documented accuracy test.

The supplier should show repeated measurements, not one successful reading. A technician can place a calibrated steel rule or digital gauge against the backgauge stop. Measure several positions across the working width. Small differences may reveal alignment problems.

Tip 2: Inspect accuracy under realistic conditions.

Thin sheet can move differently from thick plate during positioning. Test several lengths, such as 100 mm, 500 mm, and 1,000 mm. Check the first cut, then repeat it after continuous machine movement. Watch the stop fingers closely. Any visible vibration deserves investigation.

Hydraulic pressure, guide wear, temperature, and loose fasteners can affect results. A machine may reach ±0.02 mm in a controlled test, yet perform less consistently on a busy shop floor. That gap matters. I have found that operators sometimes trust the display too quickly. The display can be correct while the mechanical stop remains misaligned. Ask about calibration intervals, adjustment access, and service records. Also confirm whether the control system stores positioning data reliably after power interruptions. One practical check is simple: mark a test sheet, reposition it five times, and compare every cut with a calibrated micrometer. Perfect results are uncommon. Consistent results are the real target.

Check ISO 12100 Safeguards, Maintenance Access, and Lifecycle Costs

Choosing a hydraulic metal shear machine requires more than comparing cutting capacity and price. Check whether the design reflects ISO 12100 risk-assessment principles. Guards should block access to moving blades and hydraulic pinch points. Emergency stops must be visible and easy to reach. Interlocks should prevent operation when protective covers are open. Ask for clear safety instructions, training materials, and maintenance records.

Maintenance access strongly affects daily reliability. Inspect the hydraulic tank, filters, hoses, blade gap, and lubrication points before buying. Can a technician reach these parts without removing half the machine? Poor access increases service time and encourages skipped inspections. I have seen simple leaks become expensive failures because routine checks were awkward. That lesson still matters.

Calculate lifecycle costs, not only the invoice. Include blade sharpening, replacement seals, hydraulic oil, electricity, operator training, and planned downtime. A machine with a lower purchase price may consume more energy or require frequent adjustment. Check whether spare parts have documented specifications and reasonable availability. Ask for noise data and measured cutting accuracy under realistic workloads. Short demonstrations can mislead. Test several material thicknesses instead. My checklist is useful, but not perfect; production conditions can expose weaknesses that a showroom cannot. Keep a small budget for unexpected repairs during the first year.
